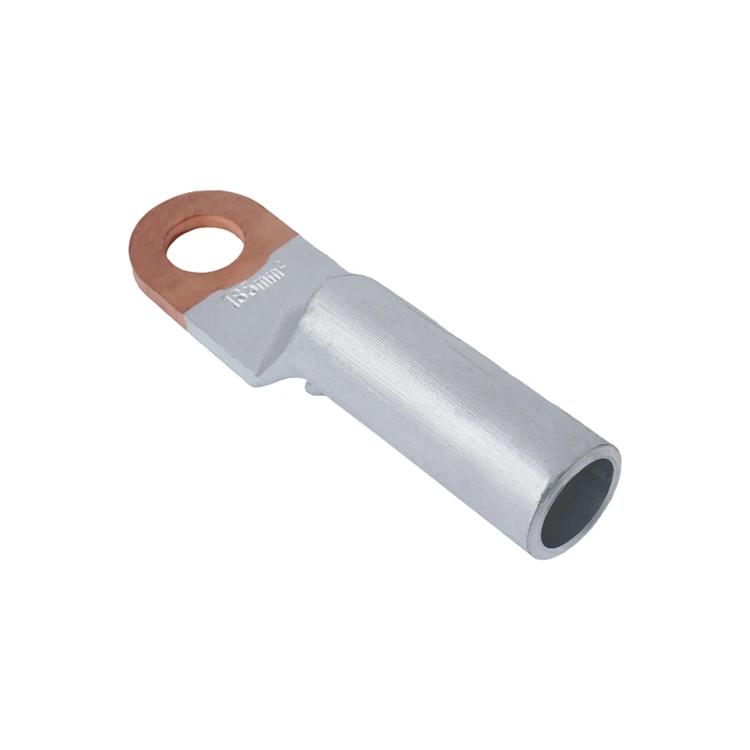

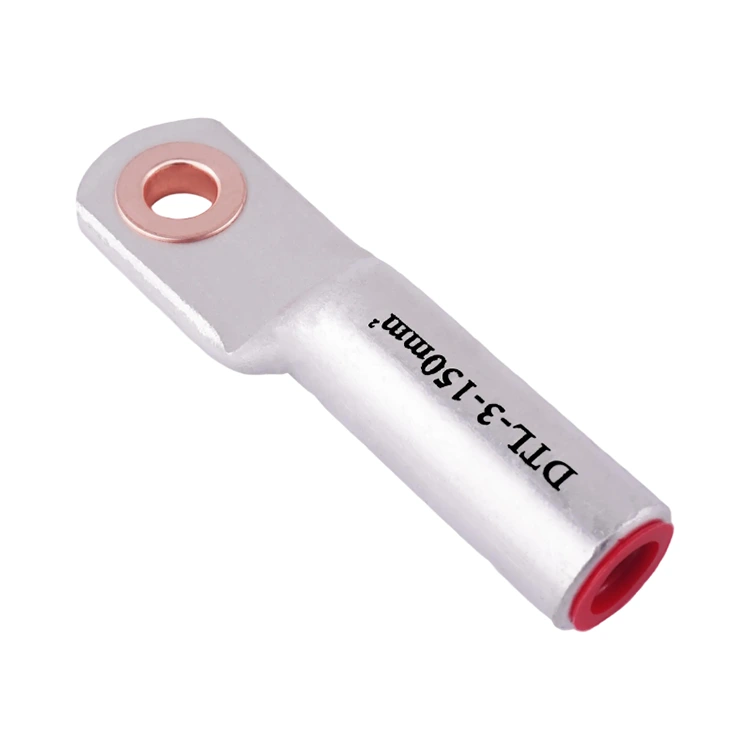

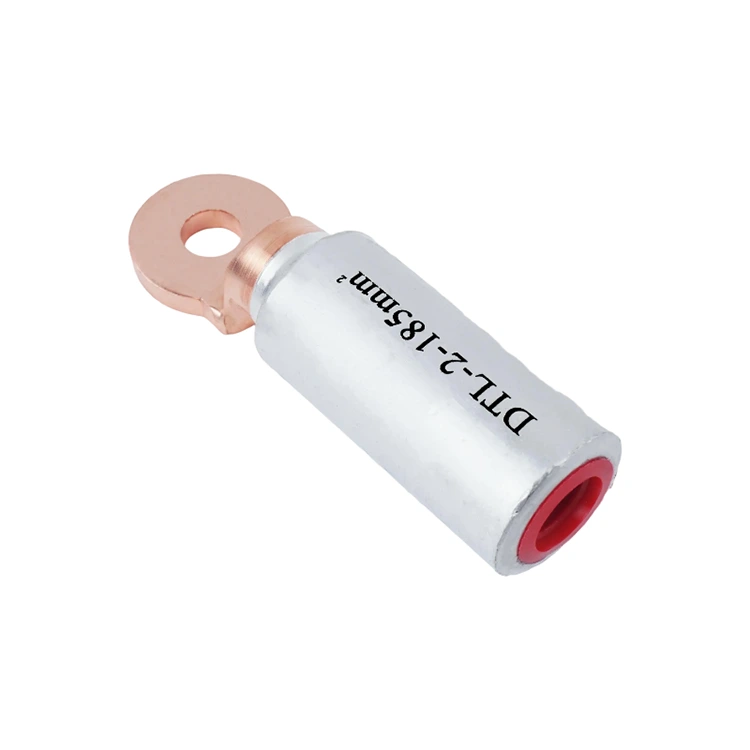

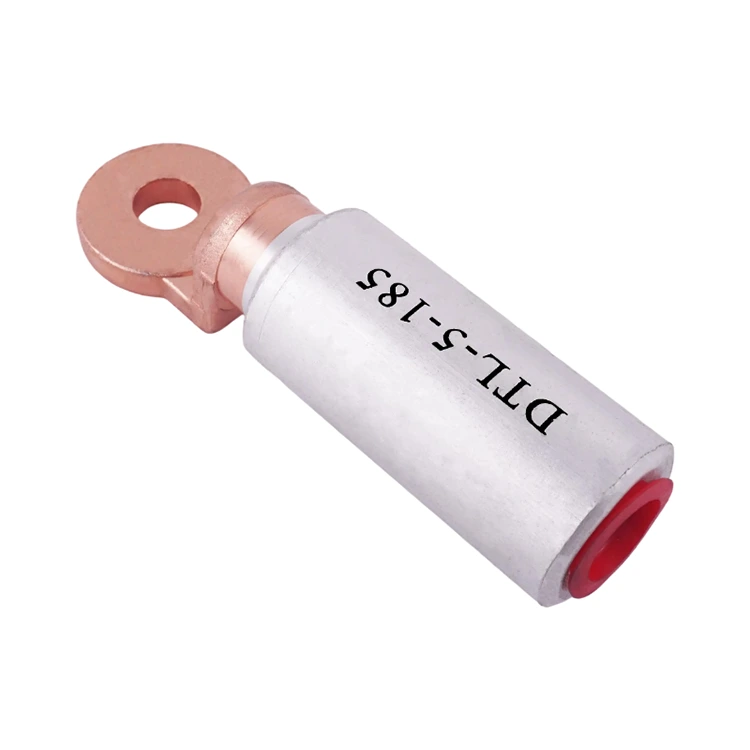

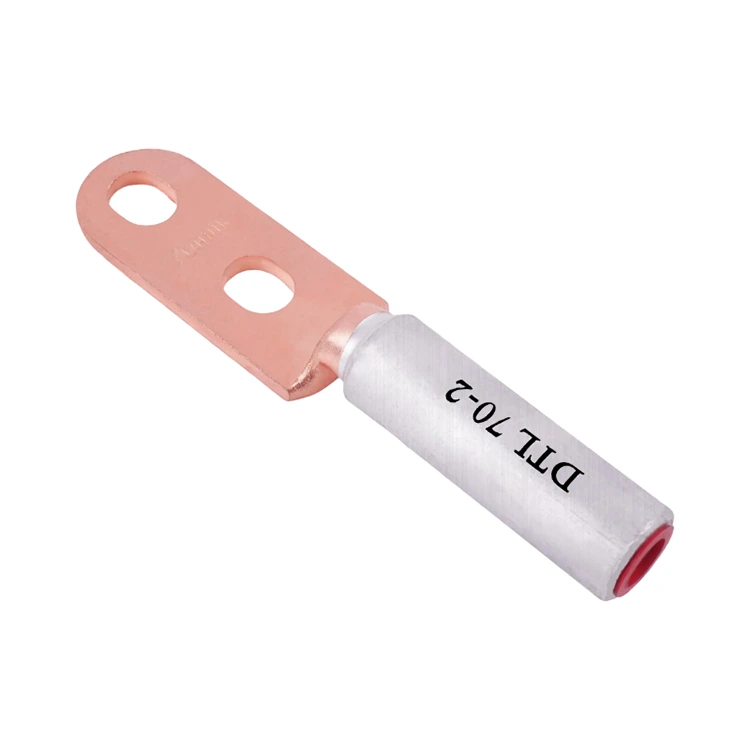

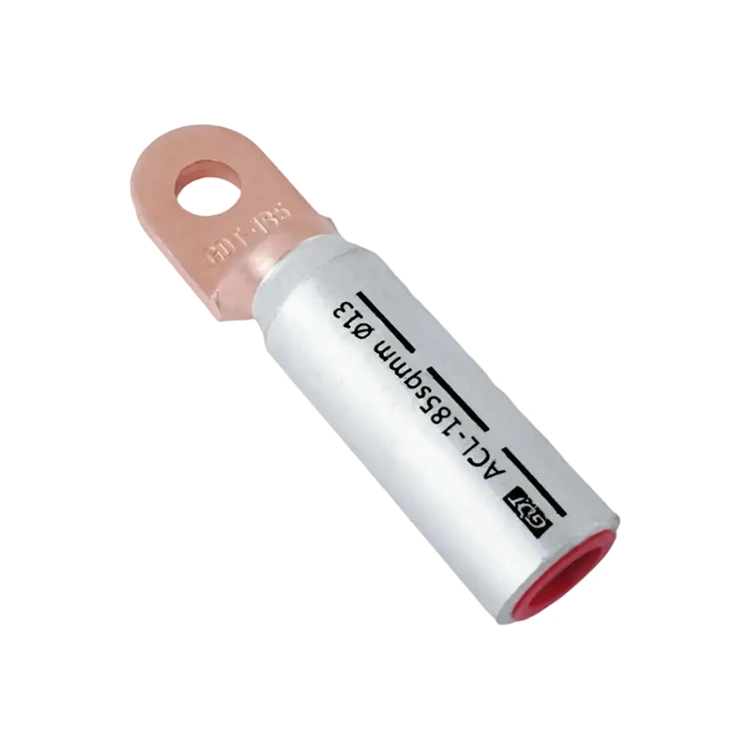

Copper Aluminum Terminal for Power Battery

중국 Zenko 공장의 전원 배터리용 도매 품질 구리 알루미늄 터미널. 이는 구리 버스바가 알루미늄 전류 수집 장치와 만나는 내부 배터리 팩 연결을 위해 특별히 제작되었습니다. Manufactured by the Chinese supplier Zenko with explosion welding technology, it creates a permanent, low-resistance bond that withstands the thermal cycling and vibration inherent in battery operation.

Power battery packs operate under demanding conditions—repeated charge/discharge cycles generate heat, vibration from vehicle motion stresses connections, and any increase in contact resistance accelerates degradation. The Copper Aluminum Terminal for Power Battery ensures stable, low-resistance connections throughout the battery system service life.

배터리 관련 과제

●Thermal cycling:  Charge/discharge cycles cause repeated heating and cooling of connections

●Internal heating:  Battery cells generate heat that transfers to terminals and busbars

●Vibration stress:  EV operation subjects battery pack connections to continuous vibration

●Safety critical:  Connection failure inside a sealed battery pack is catastrophic

●Space constrained:  Battery modules have minimal clearance for oversized connections

●Long service life:  Battery packs designed for 8-15 years, terminals must match

주요 특징

●Ultra-low resistance:  Explosion-welded bond minimizes contact resistance for battery efficiency

●Thermal stability:  Maintains connection integrity through thousands of thermal cycles

●Short-barrel design:  Compact form factor fits tight battery module spacing

●Tin-plated surface:  Prevents oxidation in sealed battery enclosure environments

●Heat-resistant:  Rated -40°C to +125°C for battery thermal conditions

●Vibration tested:  Validated for battery pack vibration profiles per ISO 12405

기술 사양

배터리 화학 호환성

The Copper Aluminum Terminal for Power Battery made in China is compatible with major power battery chemistries:

●LFP (Lithium Iron Phosphate):  Aluminum cell tabs, 2.5-3.65V per cell, 3000+ cycles

●NMC (Nickel Manganese Cobalt):  Aluminum cell tabs, 2.8-4.2V per cell, high energy density

●LTO (Lithium Titanate):  Aluminum current collectors, extreme cycle life

●Sodium-Ion:  Aluminum current collectors, emerging technology

안전 및 테스트

배터리 안전은 협상할 수 없습니다. The Copper Aluminum Terminal for Power Battery from Zenko undergoes rigorous testing to ensure reliability in battery pack environments:

●Thermal shock:  -40°C ↔ +125°C rapid cycling, 100 cycles minimum

●Overcurrent:  150% rated current for 1 hour—no degradation

●진동:  ISO 12405-3 배터리 진동 프로필

●Mechanical shock:  50g half-sine, 11ms per UN 38.3

●염수 분무:  밀봉된 팩 환경의 경우 ≥500시간

●Flame retardancy:  Self-extinguishing per UL 94 V-0 requirements

젠코를 선택하는 이유는 무엇입니까?

Zenko understands battery pack engineering. Our Copper Aluminum Terminal for Power Battery is designed in collaboration with battery manufacturers to meet the strictest safety and performance requirements.

●Battery industry focus:  Dedicated product line for power battery connections

●Co-development:  Work with battery OEMs on custom terminal solutions

●Full traceability:  Lot-level traceability for battery safety compliance

●Test reports:  Complete test data package per IEC 62619 and GB 38031

●Rapid prototyping:  2-week sample delivery for new battery pack designs
